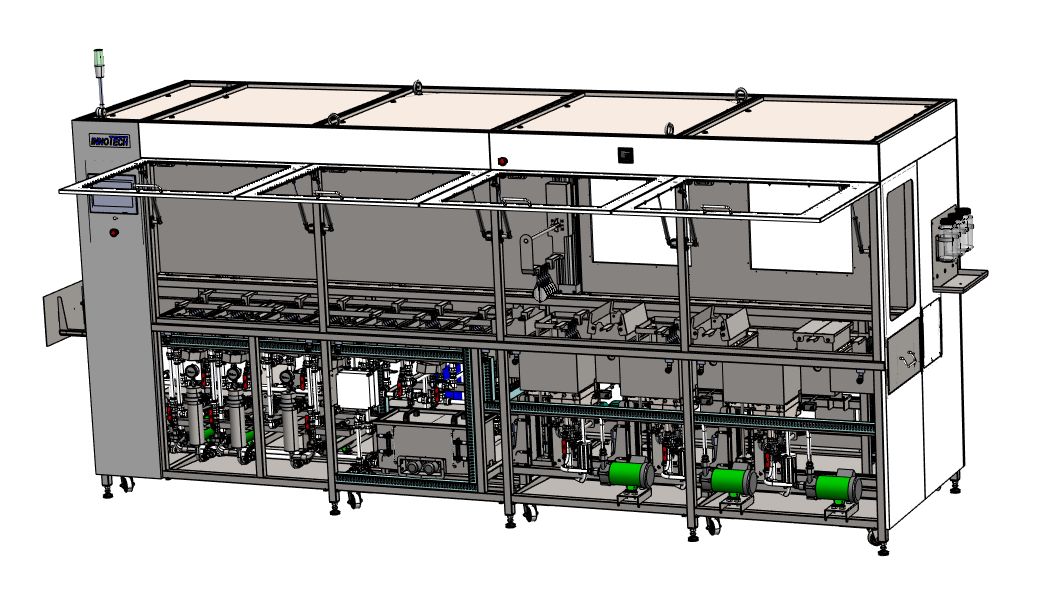

Procoat140x

Procoat140x is a fully automatic yet very economical hard coating system for ophthalmic lenses. Robust construction with foolproof features makes PROCOAT140x users delight. Provision for precisely tuning the coating process makes this system unique. Meticulous engineering makes this system a plug and play model.

Download Brochure

Main Salient Features

    • 14 lenses ( 7 pairs ) in one load.
    • 100 lenses per hour with 90% plus yield.
    • 9 recipes – can be set for all types like PC, CR, hi index, cut lenses etc.
    • 8 cleaning stages
    • 3 independent varnish plus precure dryer sets.
    • Pick and place robotic handler – horizontal servo and vertical pneumatic.
    • Up to 80 mm dia.
    • Built in RO to DI conversion units.
    • Complete fabrication in stainless steel.

Technical Details

    • Dimensions : 4600 X 1800 X 2200 mm
    • Weight: 1600 kg
    • Power: 14 Kwatt , 415V, 3ph +N , 50/60 Hz.
    • Compressed air : 5 bar
    • Flow machine : Left to right
